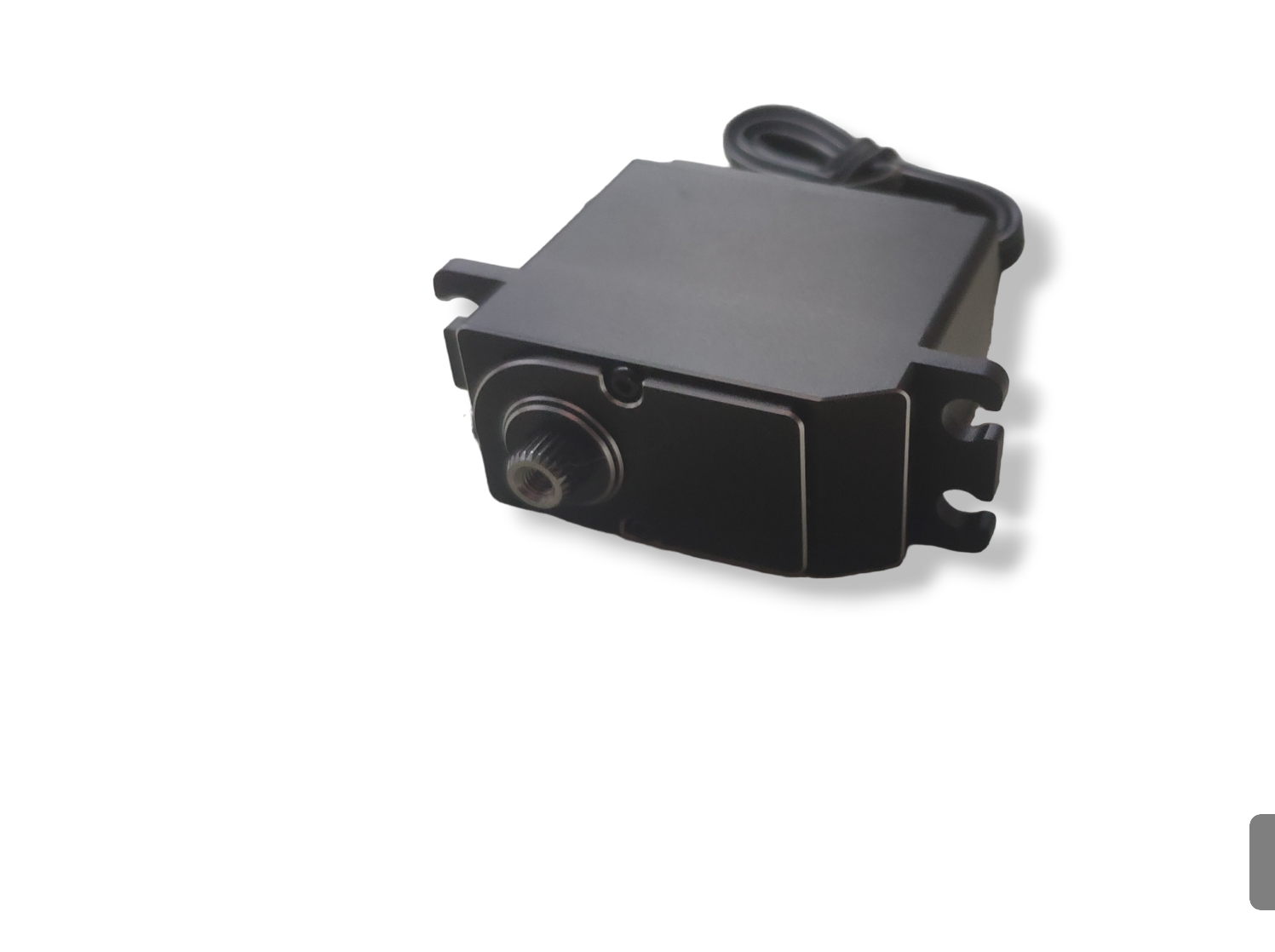

RCES Standard Digital Waterproof IP67 Servo - 40 KG RCES-40BWP

RCES Standard Digital Waterproof IP67 Servo - 40 KG RCES-40BWP

• • Brushless digital servo
  • Waterproof IP67 rating for cars and airplanes
  • Operating voltage: 6-8.4 V
  • Operating speed:
    • 7.4 V: 0.078 s/60°
    • 8.4 V: 0.065 s/60°
  • Torque:
    • 7.4 V: 38 kg-cm
    • 8.4 V: 40 kg-cm
  • Spline (horn gear): 25T
  • Size: 40x20x38mm
  • Weight: 79g
  • Rotation angle limit: 180 ± 10° (500-2500μsec)
  • Rotation direction: 180° (1000-2000μsec)
  • Operational displacement: 220
  • Neutral position: 1520μsec
  • Maximum rotation: ≈180° (500-2500μsec)
  • Pulse width range: 500-2500μsec
  • Deadband width: 2μsec
  • Connector wire length: 315mm
